Systems

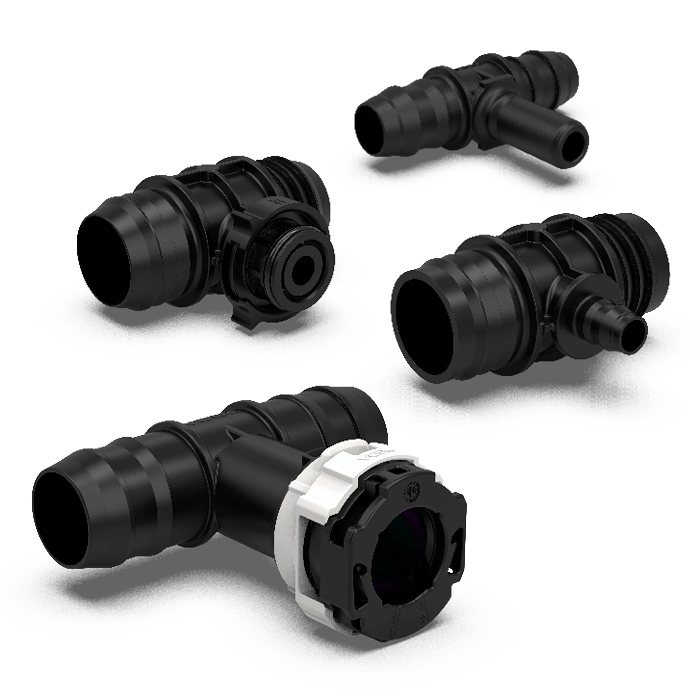

Customized Components

• Individually developed system components and special products according to requirements and customer wishes
• Based on our many years of experience, visionary creativity and state-of-the-art production technologies, we design custom-made products according to specific requirements
• We are also available as a development partner and manufacture individual customer solutions in the usual high VOSS quality
• The best examples are specific T-pieces with different internal diameters for an even distribution of the cooling liquid
• Also possible in combination with double flow stop valves

VOSS vent valve

Single-sided flow stop valve for manual venting of cooling circuits

• Closed leak-proof when not actuated
• The valve opens automatically when the vent line is plugged in
• Compact design
• Integrated at the highest point of the circuit
• Can also be used as a drain valve when integrated at the lowest point of the circuit

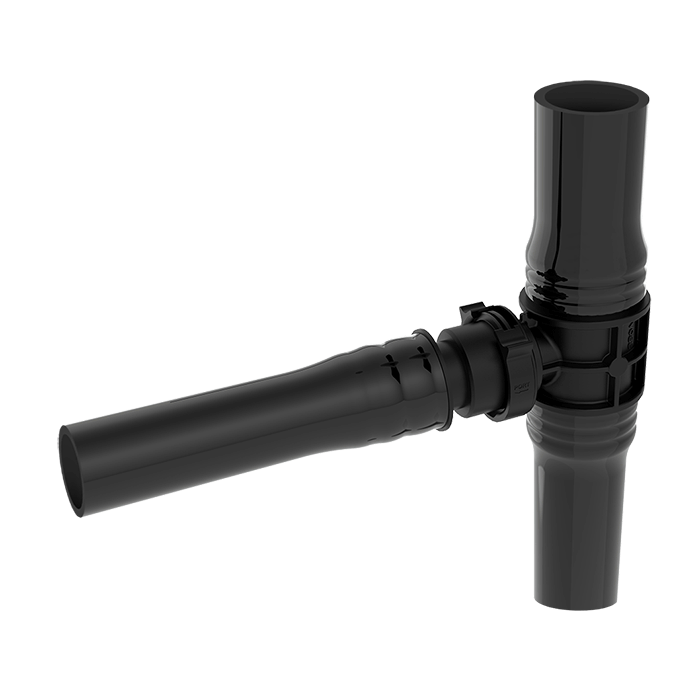

VOSS lines for liquid cooling

Individual solutions for liquid cooling using line routing and function integration

• Integration of various connection systems, e.g. VOSS QC systems 270, 271 and 272
• Minimal installation space
• Component and installation space optimization through functional integration in customer-specific manifolds and connectors
• Pressure-drop optimized line design
• Tightness and freedom from maintenance of the media-carrying systems over the entire service life
• Hydraulic balancing through defined cross-section changes
• Various combinations of hose and tube, smooth and corrugated tube or straight and bent lines possible

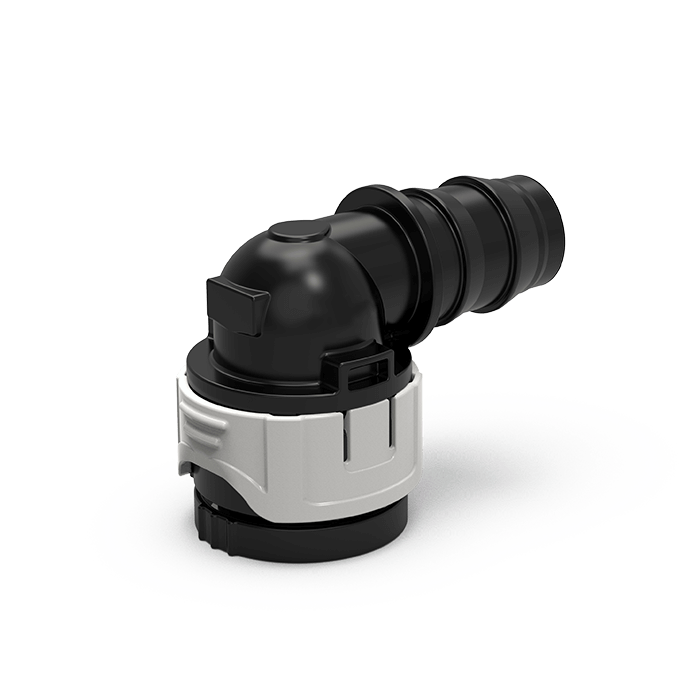

VOSS quick connect system 270^DL

Robust plastic couplings for fir-tree connection to plastic tubes

• Particularly suitable for connections to filigree cooling plates and similar components
• Quick and secure assembly
• Double Lock (DL) for additional safety through active confirmation of the correctly inserted QC system
• Very low system height
• Opening mechanism available in two different positions for easy access
• Nominal sizes S6, S10, S14
• Temperature range -40 °C to +85 °C
• Operating pressure max. 2 bar

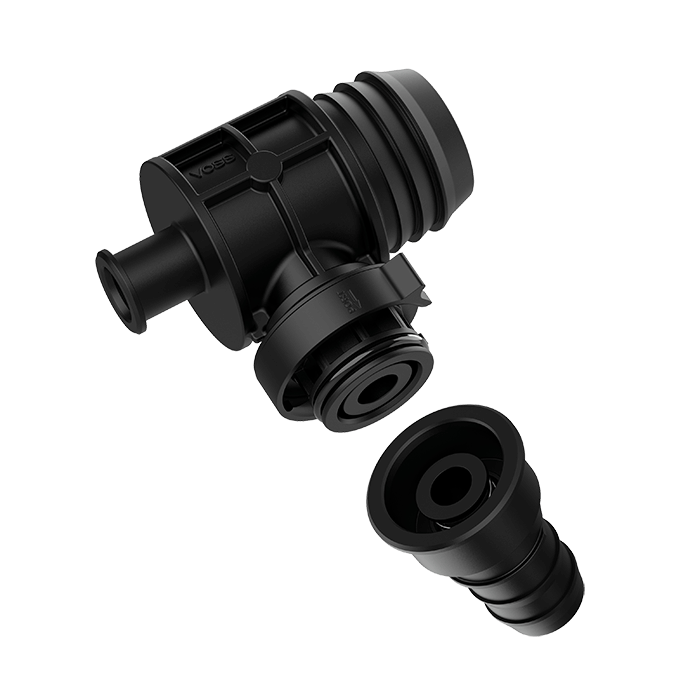

VOSS double flow stop valve

Double-sided flow valve for disconnecting cooling circuits – for maintenance purposes and changing battery modules

• Can be integrated into various QC systems of different sizes
• Automatic opening of the valve during assembly
• Automatic closing of the valve during disassembly
• Leakage-free over the entire service life
• Compact and robust design
• Consistent flow with very low pressure loss

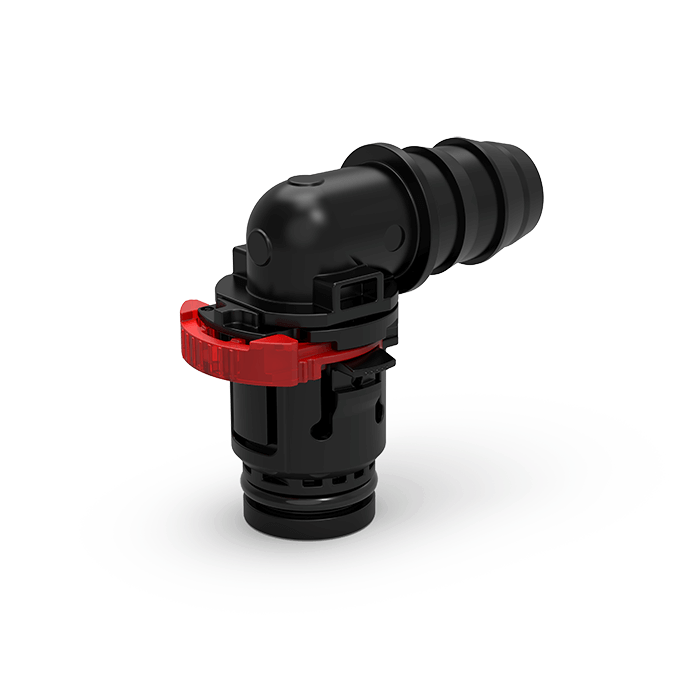

VOSS quick connect system 271^DL

Robust plastic connectors for fir-tree connection to plastic tubes

• Particularly suitable for components with recessed ports or with material for profiles bores
• Quick and secure assembly
• Double Lock (DL) for additional safety through active confirmation of the correctly inserted QC system
• Very low system height
• Opening mechanism available in two different positions for easy access
• Nominal sizes S6, S10, S14, S18
• Temperature range -40 °C to +85 °C
• Operating pressure max. 2 bar

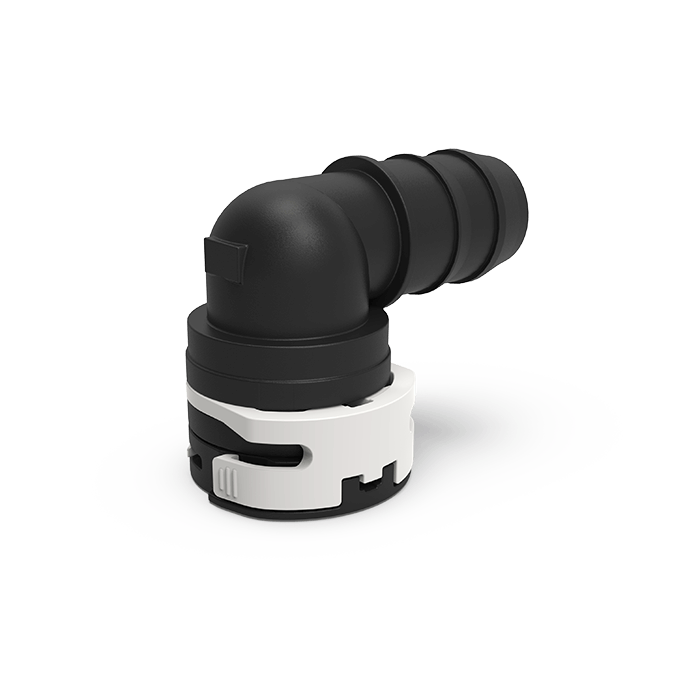

VOSS quick connect system 272

Function-optimized QC systems for thermal management solutions

• System-specific connection contour according to VOSS QC system 270
• Fast and 100% secure installation thanks to autolatch function (automatic engagement of the retaining element after successful connection)
• Pressure-locked retaining element (no release of the connector possible under pressure)
• Reduced insertion force due to optimized installation of the O-ring
• Minimum installation height
• Optionally available with visible indicators of correct connection
• Retaining element available in four different positions for easy access
• Nominal sizes S6, S10, S14, large sizes available on request
• Temperature range -40 °C to +85 °C
• Operating pressure max. 2 bar
